ME800D-24

ME800D-24 — 45° Slope, 800mm Cutting Width

Diesel 24V
Ideal for: Orchard ManagementSlope & Embankment
ME800D-24 combines 800 mm flail cutting for vegetation management with diesel working power and 24 V electric tracked travel. Match access, ground conditions and cutting tools to the job; the model TDS records the standard configuration.

Technical Specifications

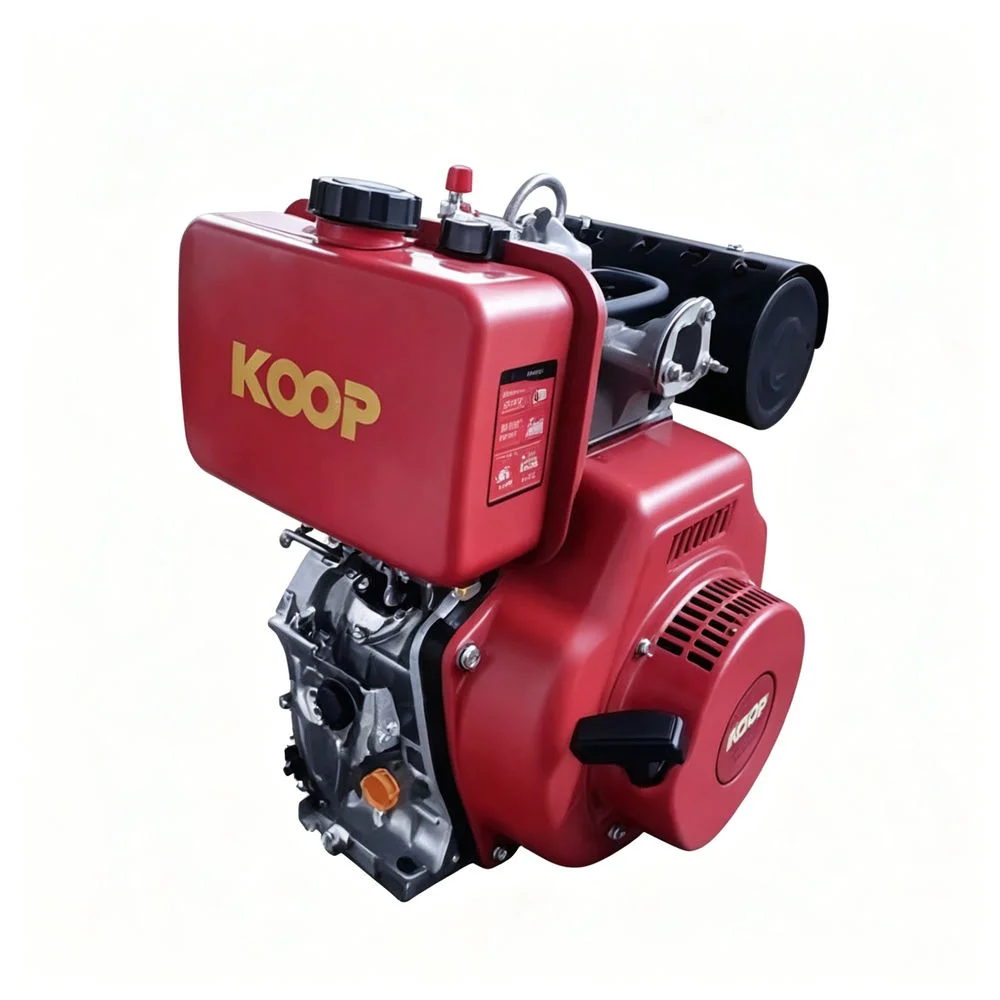

EngineKOOP192, Diesel, 12HP
Cutting Width800mm
Electronic Control System24V
Power1800W
Number of Blades30 (Flail)
Cutting Height30-300mm (adjustable)
Max Slope45°
Remote Range800m
Travel Speed0-5km/h
Fuel Tank5.5L
Weight355kg
Dimensions1650×950×920mm
Working Efficiency4000 m²/hour

Key Features

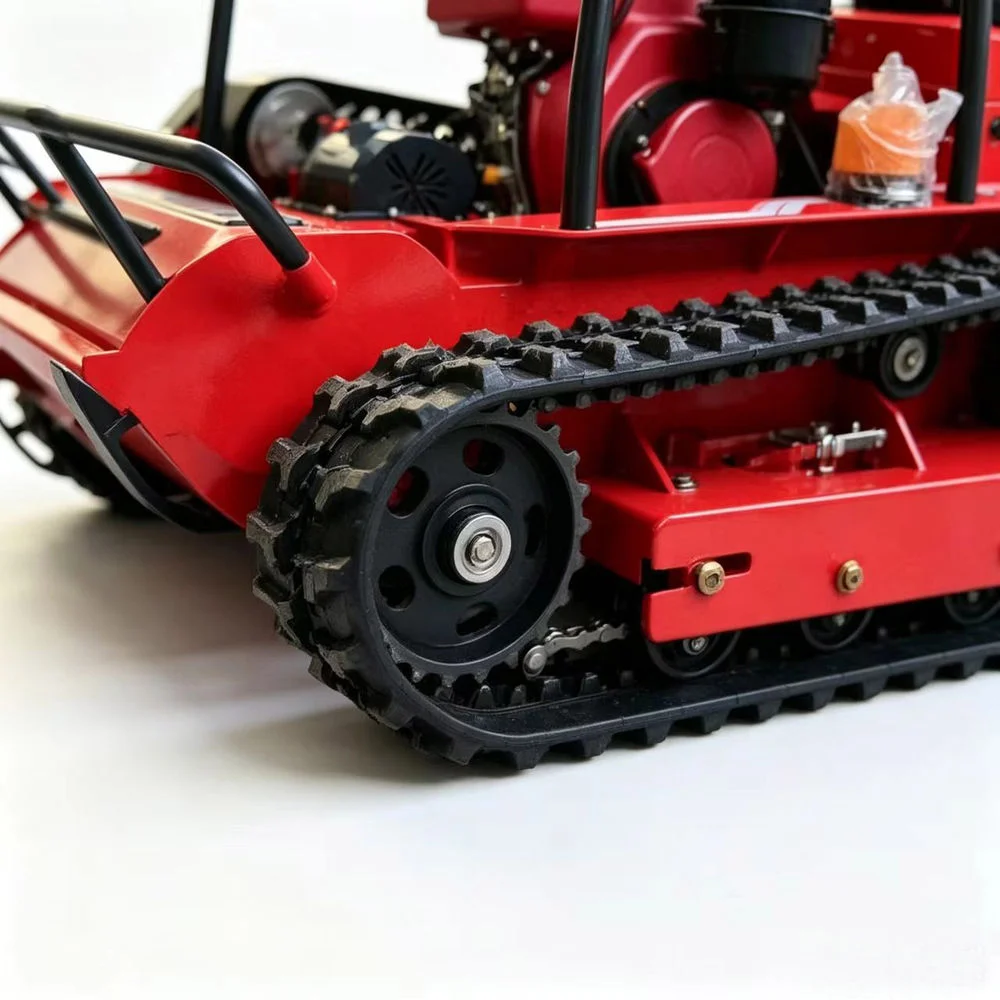

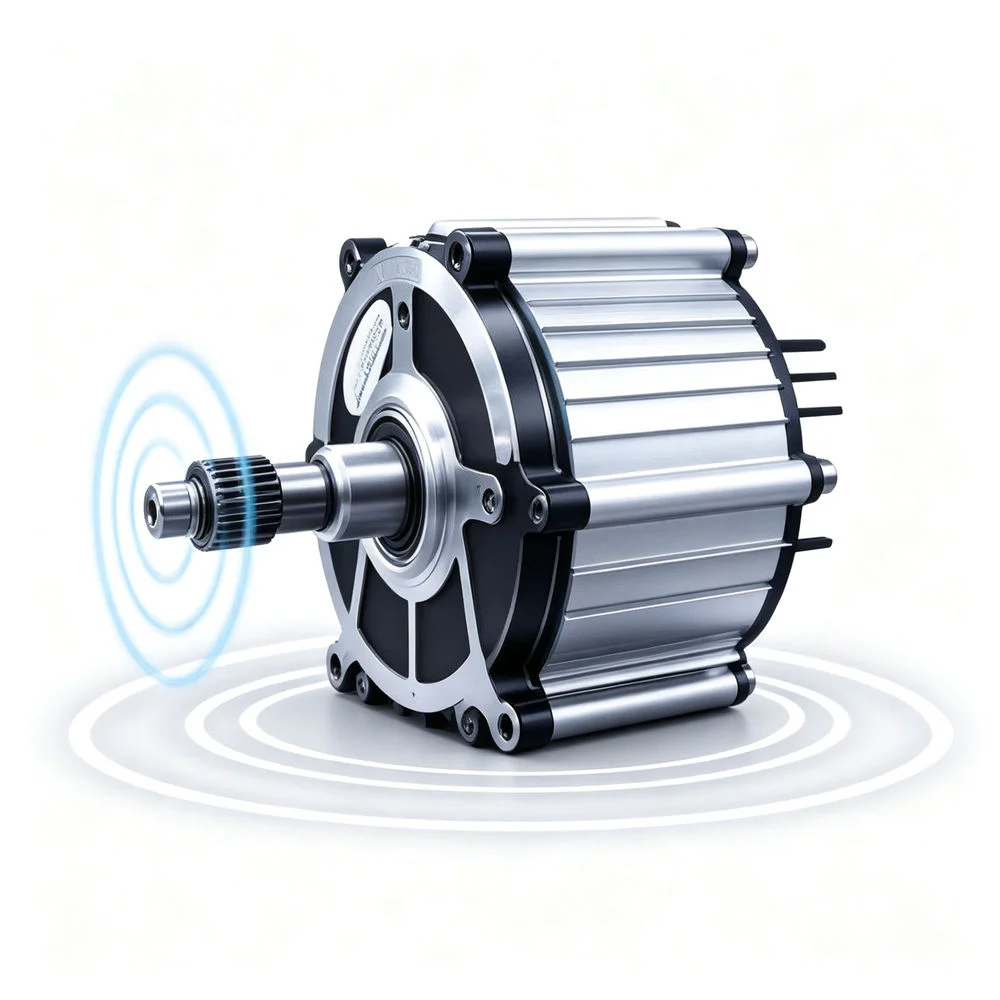

  • Tracked electric travel

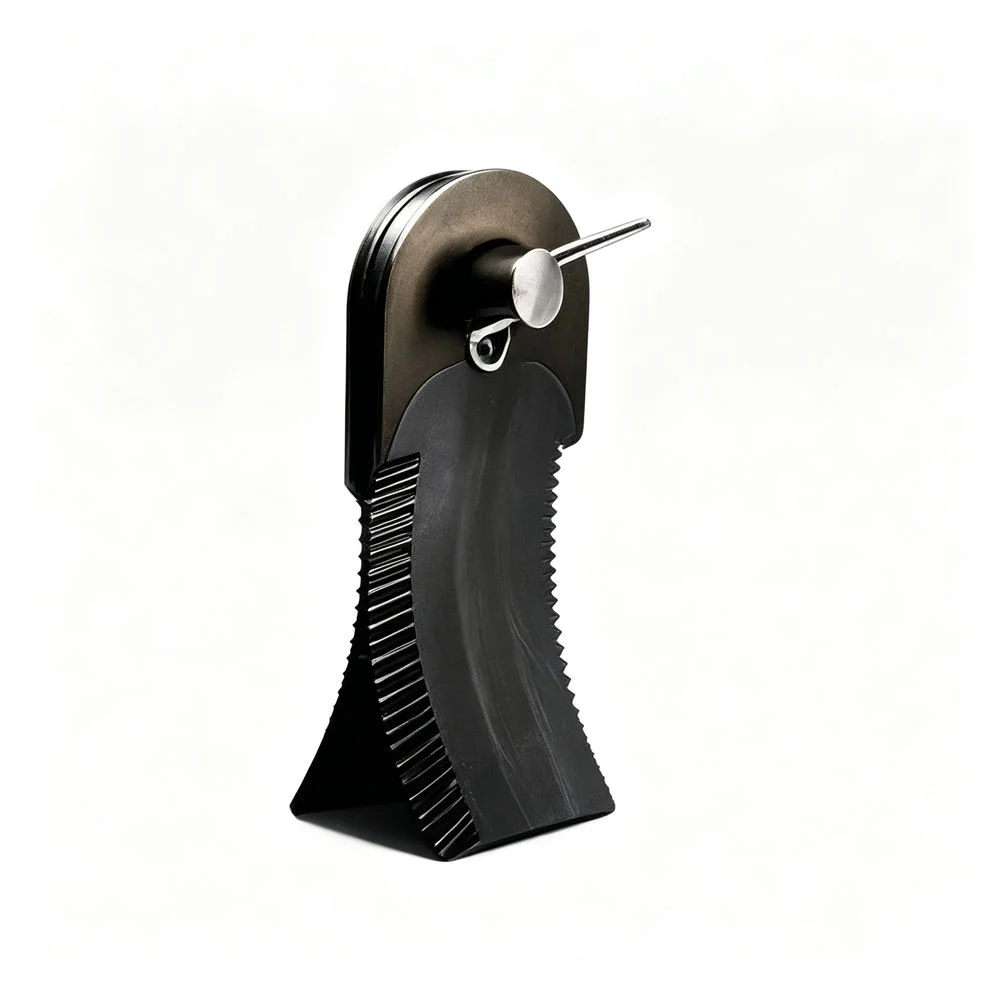

  • Flail / hammer tool selection by configuration
  • 800 mm cutting width
  • Manual standard / selected height-adjustment options
Request Quote for ME800D-24

Configure your machine

Custom options for ME800D-24

Choose the equipment you need. The technical data sheet describes the standard machine; MERI will confirm the final configuration and specifications in your quotation.

01 Engine
02 Cutting blades
03 Cutting-height actuator
04 Snow plow
05 Remote controller
06 Machine color
07 Navigation & smart options
Your selected configuration

Send configuration request

Choosing ME800D-24 for Your Site

ME800D-24 is designed for Orchard Management, Slope & Embankment where tracked traction and remote operation help keep the operator away from slopes, moving blades and difficult ground. Its 800mm working width and 45° slope rating should be matched to vegetation density, access width, ground conditions and the required daily output.

Before ordering, confirm the engine and electrical configuration, cutting-height range, attachments, destination-market compliance and shipping requirements with MERI. The downloadable technical data sheet records the standard configuration; final specifications and optional equipment are confirmed in the quotation and production documents.

Compare MERI mower families or send your site details for model selection support.

Plan your order · ME800D-24

From machine selection to a complete working package

Bring together the configuration, site requirements and delivery plan before requesting your quotation.

Define the standard build and upgrades

Use the TDS for the diesel 24 V standard model. Manual height adjustment and the C7 controller are standard. Confirm the Loncin gasoline or KOOP diesel single-cylinder configuration, flail or hammer tools, electric or hydraulic actuator, and front or rear snow plow in the quotation.

Read the official ME800D-24 TDS

Check access and the working width

The 800 mm head must fit the vegetation task and the complete route. Measure gates, rows, headlands, turns and loading access. Specify the 24 V electrical configuration when planning replacement components.

Compare cutting widths and access

Agree the delivery and support scope

State the destination, quantity, unloading equipment and local service plan. Request the packing list, acceptance checks, spare-parts package and written commercial terms for the selected configuration.
